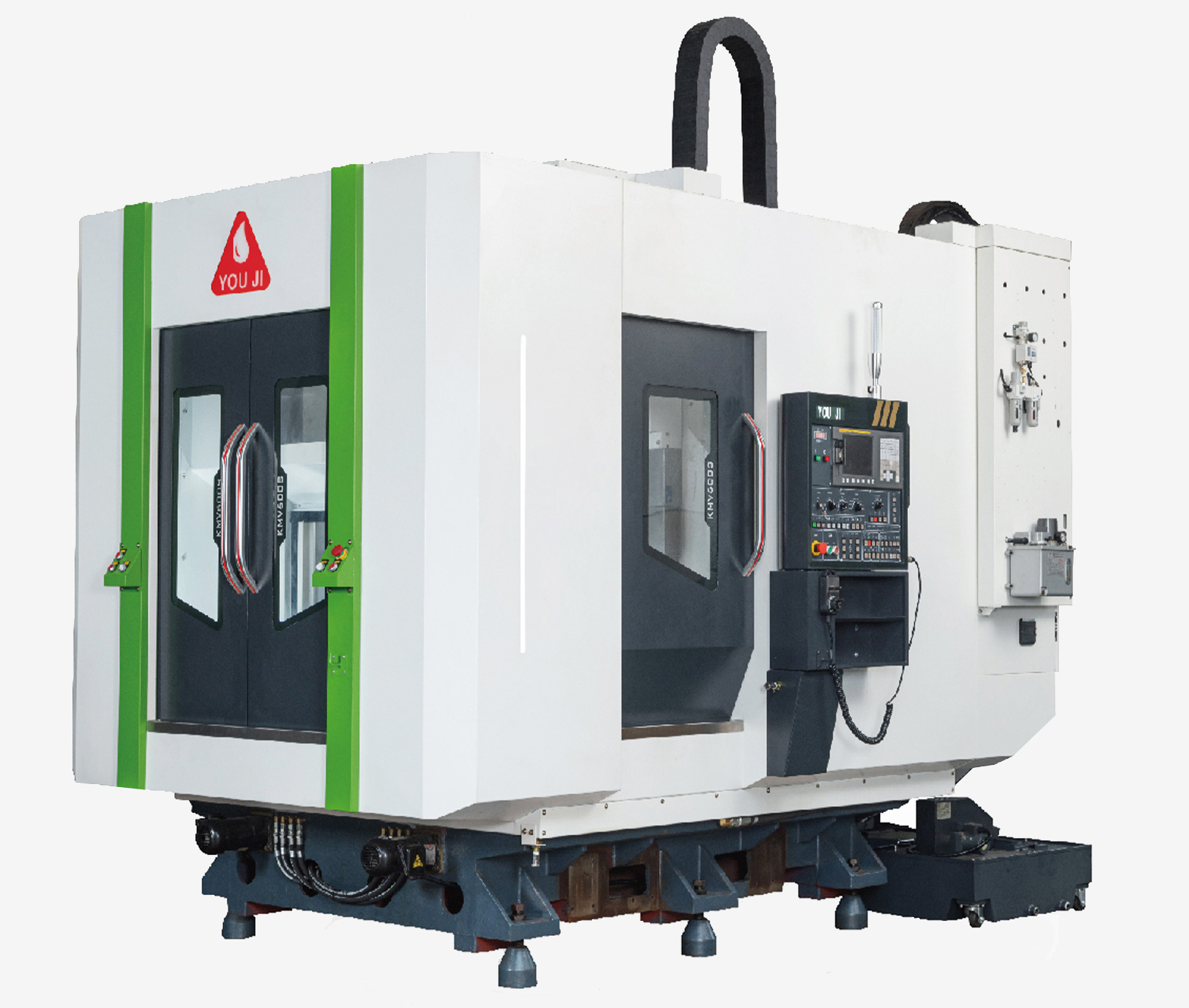

KMV600T

Worktable area 1090x700mm

T-slot (size x quantity x center distance) 18x3Tx100

Max table load 700kg

X/Y/Z axis travel 610/410/460mm

X/Y/Z axis rapid feed 30/30/30m/mm

Spindle nose to table distance 220~680mm

Table center to spindle center distance 120~530mm

Max. spindle speed 8000rpm

Spindle front bearing diameter φ60mm

Mechanical height 2835mm

Floor area 2290*3170mm
